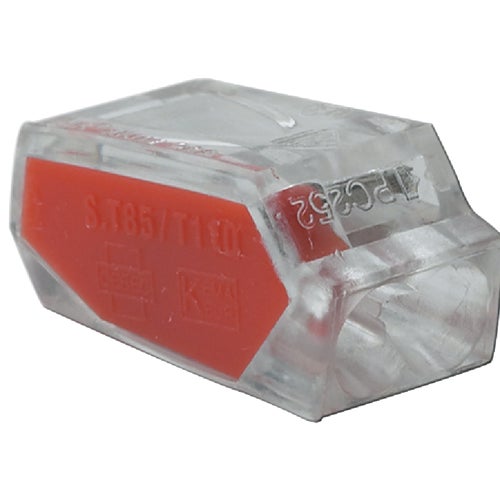

19-PC2 Gardner Bender PushGard Push-In Connector
PushGard wire connector. Features include no twist connection, low insertion force for fast, easy application. Accepts solid and many stranded wire combinations. Clear shell makes connection easy to inspect. Rated to 600V maximum, shell rated to 105 degrees Celsius. Check port for continuity testing. Electrolytic tin-plated internal copper bus for high conductivity. Accepts #22 to #12 AWG wire. UL (Underwriter's Laboratories) listed and CSA (Canadian Standards Association) certified.
No. 19-PC2: Number Of Ports: 2, Voltage: 600, Wire Size: #22 to #12 AWG, Certification: CSA/UL Listed, Pkg Qty: 10, Package Type: Clamshell
No. 19-PC3: Number Of Ports: 3, Voltage: 600, Wire Size: #22 to #12 AWG, Certification: CSA/UL Listed, Pkg Qty: 10, Package Type: Clamshell
No. 19-PC4: Number Of Ports: 4, Voltage: 600, Wire Size: #22 to #12 AWG, Certification: CSA/UL Listed, Pkg Qty: 10, Package Type: Clamshell
No. 19-PC8: Number Of Ports: 8, Voltage: 600, Wire Size: #22 to #12 AWG, Certification: CSA/UL Listed, Pkg Qty: 10, Package Type: Clamshell
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
WARNING: This product can expose you to chemicals including DEHP which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
