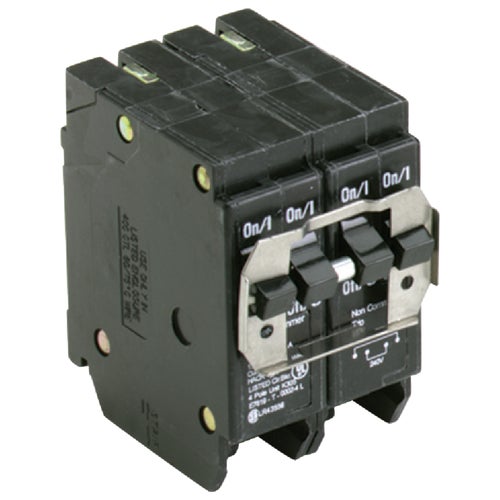

BQ220220 Eaton BQ Quadplex Circuit Breaker
BQ quadplex circuit breaker for use in load centers with notched bus bars. Allows 2 options for use: (2) 2-pole or (1) 2-pole and (2) 1-pole breakers in 2 spaces. 120 volt/240 volt. For use in BR series panels. UL (Underwriter's Laboratories) listed.
No. BQ220220: Amperage: 20/20, Number of Poles: 4, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 2, Mount Type: Plug-In, Wire Size: #14-4 AWG, Certification: UL Listed, Pkg Qty: 1
No. BQ230230: Amperage: 30/30, Number of Poles: 4, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 2, Mount Type: Plug-In, Wire Size: #14-4 AWG, Certification: UL Listed, Pkg Qty: 1
No. BQ230240: Amperage: 30/40, Number of Poles: 4, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 2, Mount Type: Plug-In, Wire Size: #14-4 AWG, Certification: UL Listed, Pkg Qty: 1
No. BQ220230: Amperage: 20/30, Number of Poles: 4, Interruption Type: Independent Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 2, Mount Type: Plug-In, Wire Size: #14-4 AWG, Certification: UL Listed, Pkg Qty: 1
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
