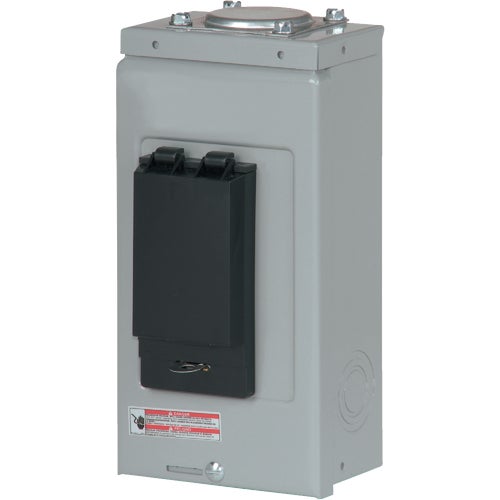

BR816L125FDP Eaton BR Main Lug Load Center
Main lug load center designed for service entrance equipment. Main lugs only. Single-phase, 3-wire, flush or surface mount. Solid neutral bar and cover included. Optional ground bar kits must be ordered separately. Load centers that accept BD and BQ type circuit breakers have a notched bus bar. UL (Underwriter's Laboratories) listed.
No. BR24L70FP: Series: BR, Amperage: 70, Number Of Spaces: 2, Max Number of Poles: 4, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Flush, Phase: Single, Wire Size: #8 To #2, Height (In.): 9.44, Width (In.): 4.5, Depth (In.): 3, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR24L70SP: Series: BR, Amperage: 70, Number Of Spaces: 2, Max Number of Poles: 4, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Surface, Phase: Single, Wire Size: #8 To #2, Height (In.): 9.44, Width (In.): 4.5, Depth (In.): 3, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR24L70RP: Series: BR, Amperage: 70, Number Of Spaces: 2, Max Number of Poles: 4, Voltage: 120/240, Enclosure Type: Rainproof, Mount Type: Surface, Phase: Single, Wire Size: #8 To #2, Height (In.): 9.44, Width (In.): 4.5, Depth (In.): 3, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR612L125FDP: Series: BR, Amperage: 125, Number Of Spaces: 6, Max Number of Poles: 12, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Flush, Phase: Single, Wire Size: #14 To #1, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR612L125SDP: Series: BR, Amperage: 125, Number Of Spaces: 6, Max Number of Poles: 12, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Surface, Phase: Single, Wire Size: #14 To #1, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR612L125RP: Series: BR, Amperage: 125, Number Of Spaces: 6, Max Number of Poles: 12, Voltage: 120/240, Enclosure Type: Rainproof, Mount Type: Surface, Phase: Single, Wire Size: #14 To #1, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR816L125FDP: Series: BR, Amperage: 125, Number Of Spaces: 8, Max Number of Poles: 16, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Flush, Phase: Single, Wire Size: #14 To #1, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR816L125RP: Series: BR, Amperage: 125, Number Of Spaces: 8, Max Number of Poles: 16, Voltage: 120/240, Enclosure Type: Rainproof, Mount Type: Surface, Phase: Single, Wire Size: #14 To #1, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR816L125SDP: Series: BR, Amperage: 125, Number Of Spaces: 8, Max Number of Poles: 16, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Surface, Phase: Single, Wire Size: #14 To #1, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR48L125FP: Series: BR, Amperage: 125, Number Of Spaces: 4, Max Number of Poles: 8, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Flush, Phase: Single, Wire Size: #14 To 1/0, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR48L125SP: Series: BR, Amperage: 125, Number Of Spaces: 4, Max Number of Poles: 8, Voltage: 120/240, Enclosure Type: Indoor, Mount Type: Surface, Phase: Single, Wire Size: #14 To 1/0, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
No. BR48L125RP: Series: BR, Amperage: 125, Number Of Spaces: 4, Max Number of Poles: 8, Voltage: 120/240, Enclosure Type: Rainproof, Mount Type: Surface, Phase: Single, Wire Size: #14 To 1/0, Height (In.): 13, Width (In.): 11, Depth (In.): 3.56, Certification: UL Listed, Pkg Qty: 1, Package Type: Box
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
