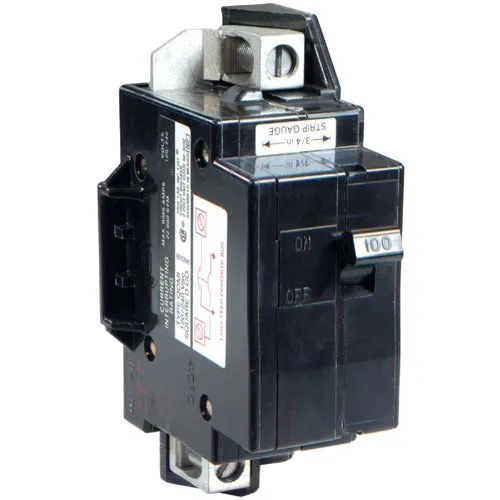

QOM100VHCP Square D QO Double-Pole Main Breaker
Field installable main breaker for QO and newer models of Homeline load centers with straight in feed. Protects breaker panel in a load center. Used for overload and short-circuit protection of electrical systems. Compatible with QO and Homeline load centers, CSED devices, and NQOD panel boards rated for 100 to 125 amps. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed for 120 volt/240 volt and 22,000 AIR.
No. QOM100VHCP: Amperage: 100, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 5, Height (In.): 5.09, Depth (In.): 3.47, Mount Type: Bolt-On, Wire Size: #4 AWG to 2/0 AWG, Certification: ANSI/UL Listed, Pkg Qty: 1, Package Type: Box
No. QOM2200VH: Amperage: 200, Number of Poles: 2, Interruption Type: Standard Trip, Voltage: 120/240, Frame Size: 2-Space, Width (In.): 2.5, Height (In.): 3.5, Depth (In.): 2.91, Mount Type: Bolt-On, Wire Size: #4 AWG to 300 KCMIL, Certification: ANSI/UL Listed, Pkg Qty: 1, Package Type: Box
Sold as Unit of Measure: EACH
Minimum/Multiple Order Quantity: 1
